Deskripsi

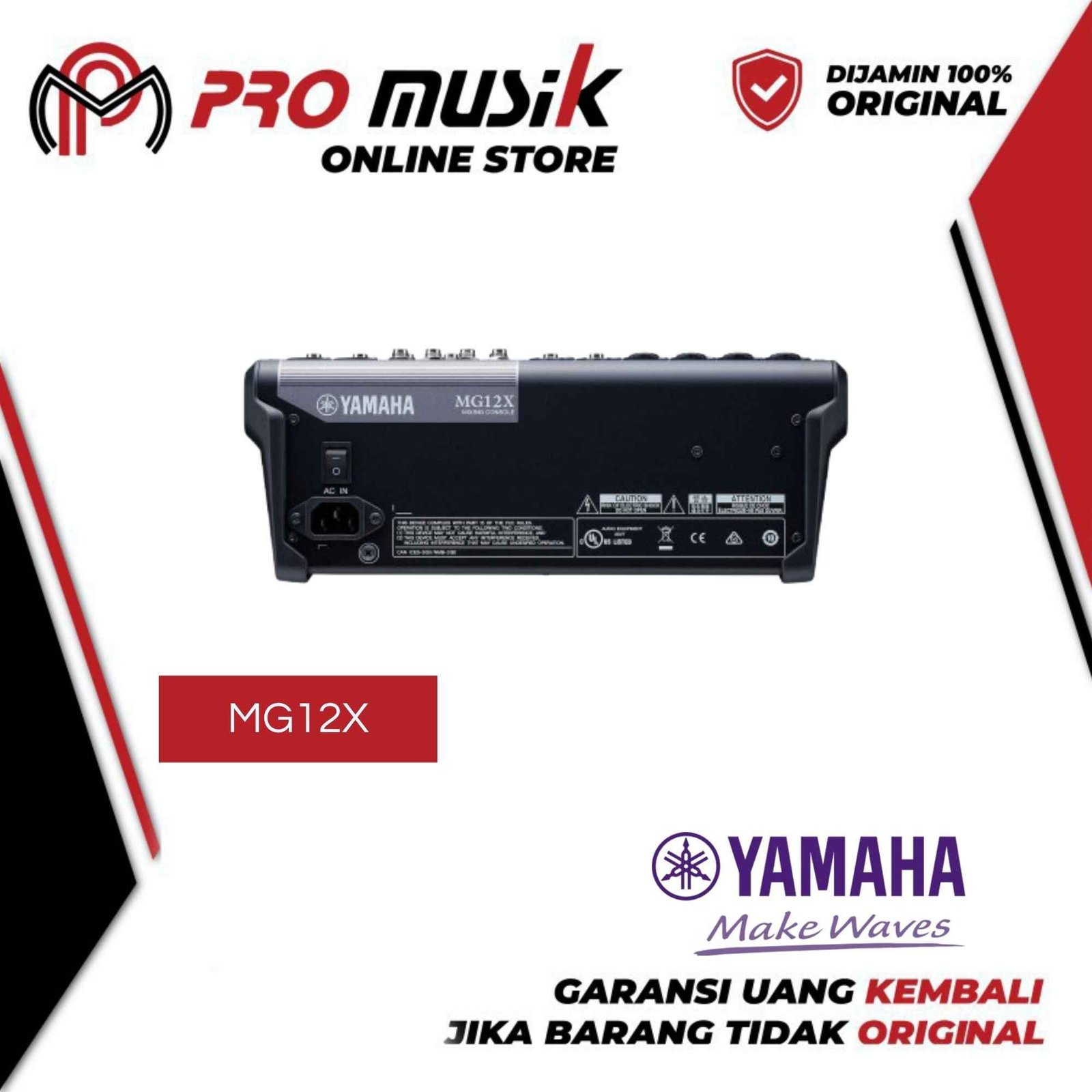

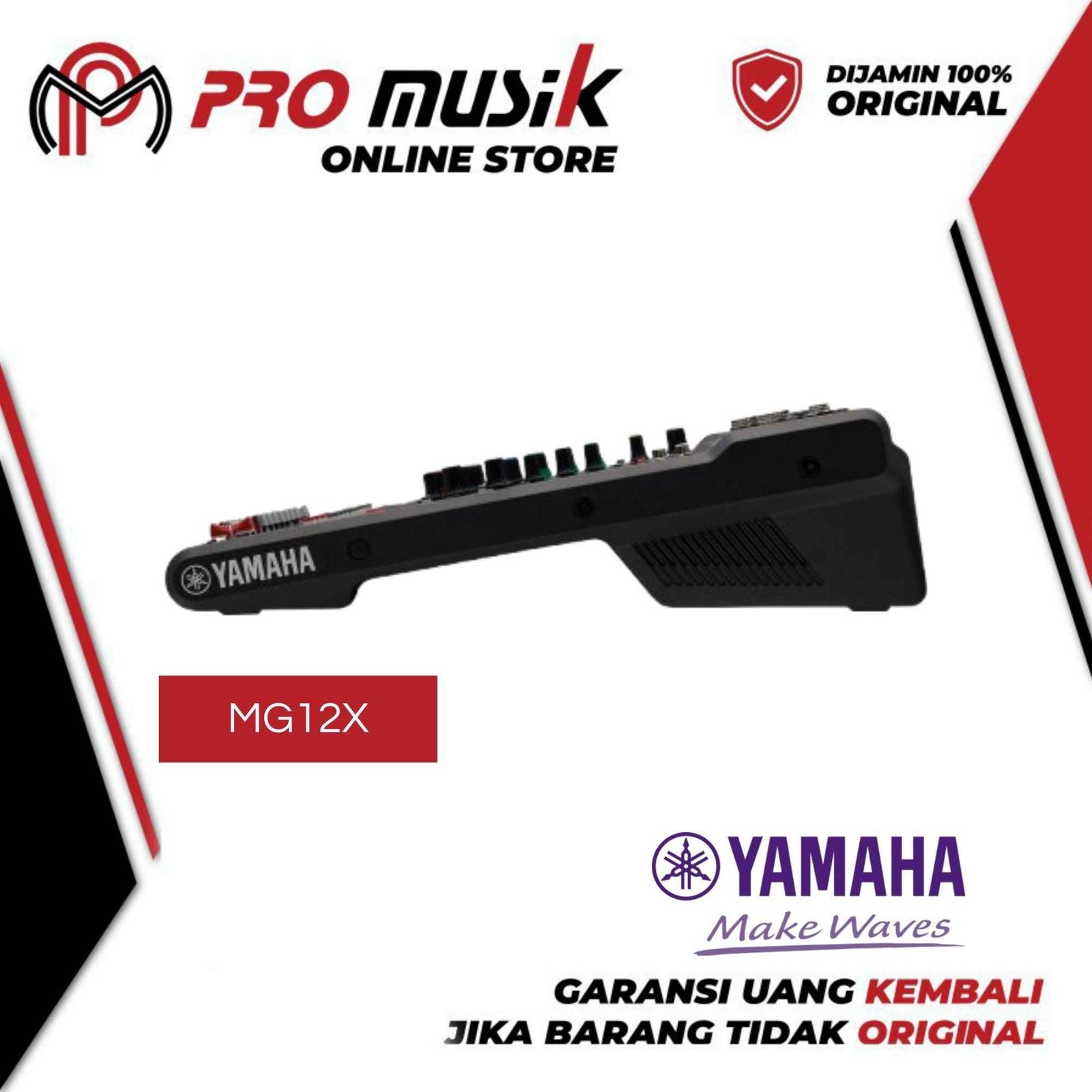

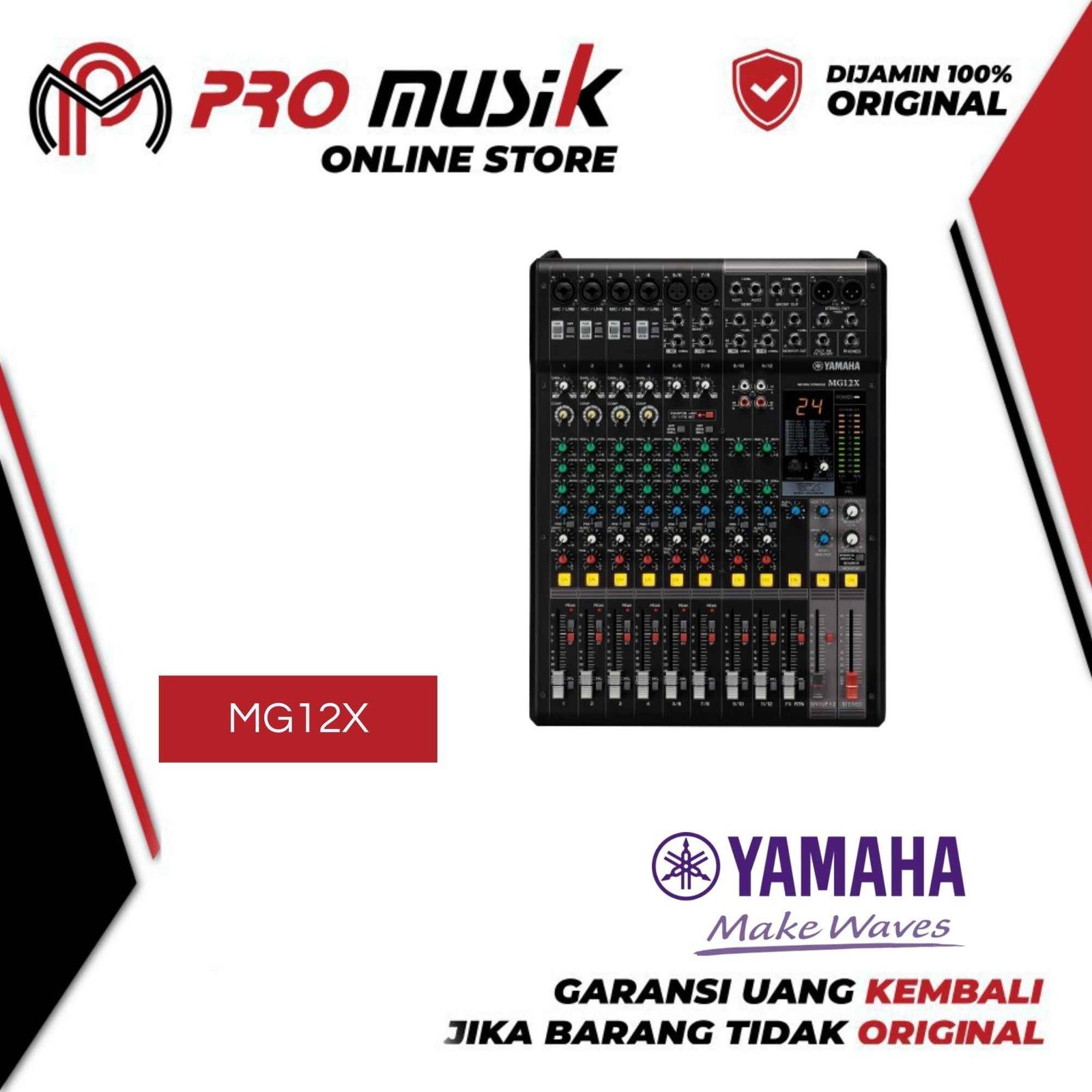

Yamaha MG12X 12 Channel Stereo Mixer with Effects

Garansi Resmi 1 Tahun PT. Yamaha Musik Indonesia

Original 100%

12-Channel Mixing Console

• Max. 6 Mic / 12 Line Inputs (4 mono + 4 stereo)
• 2 GROUP Buses + 1 Stereo Bus
• 2 AUX (incl. FX)
• “D-PRE” mic preamps with an inverted Darlington circuit
• 1-Knob compressors
• High-grade effects: SPX with 24 programs
• PAD switch on mono inputs
• +48V phantom power
• XLR balanced outputs
• Internal universal power supply for world-wide use
• Optional Rack Mount Kit RK-MG12 Available
• Metal chassis

Specs

Mixing capability

On-board processors : SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off)

I/O

Phantom power+48 V

Input Channels

Mono[MIC/LINE] : 4

Mono/Stereo[MIC/LINE] : 2

Stereo[LINE] : 2

Output Channels

STEREO OUT : 2

MONITOR OUT : 1

PHONES : 1

AUX SEND : 2

GROUP OUT : 2

Bus

Stereo: 1, GROUP: 2, AUX: 2 (incl. FX)

Input Channel Function

PAD : 26 dB (Mono)

HPF : 80 Hz, 12 dB/oct (Mono/Stereo: MIC only)

COMP : 1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec

EQ HIGH : Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving

EQ MID : Gain: +15 dB/-15 dB, Frequency: 2.5 kHz peaking

EQ LOW : Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving

PEAK LED : LED turns on when post EQ signal reaches 3 dB below clipping

Level Meter : 2×12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB]

Total harmonic distortion

0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min

Frequency response

+0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min

Hum & noise level

Equivalent input noise : -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)

Residual output noise : -102 dBu (STEREO OUT, STEREO master fader: Min)

Crosstalk

-78 dB

Power requirements

AC 100 – 240 V, 50 / 60 Hz

Power consumption

22 W

Dimensions

W308 mm (12.1″)H118 mm (4.6″)D422 mm (16.6″)

Net weight

4.2 kg (9.3 lbs.)

Accessories

Included Accessory: Owner’s Manual, Technical Specifications, AC power cord, Optional Accessory: Rack-mount kit RK-MG12, Foot Switch FC5

Others

Operating Temperature: 0 to +40˚C
