Deskripsi

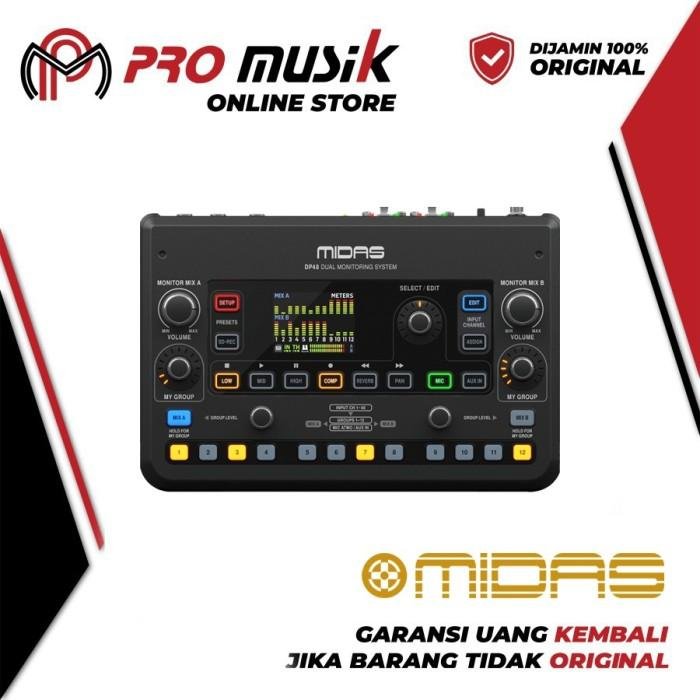

MIDAS DP 48

ORIGINAL 100%

GARANSI RESMI 1 TAHUN

In the box :

Midas DP48

External Power Supply

Quick Start Guide

Features

Dual 48-channel personal monitor mixer

Compatible with Midas personal monitoring system hubs

12 stereo groups for rapid creation and balancing of personal mixes from fully configurable stem groups

Dual mix feature allows independent control of two complete monitor mixes

Integrated SD card interface for stereo recording and playback of rehearsal sessions and performances

Built-in stereo ambience microphone provides on-stage sound feed to remove the sense of isolation with IEMs

Remotely powered via direct AES50 connection from Midas hubs featuring Power over Ethernet

Compatible with any 44.1/48kHz AES50-equipped devices including Midas and Behringer digital consoles and I/O boxes

Midas PRO SERIES and M32 console input channel labelling and colour information transmitted to the DP48 via AES50 input channels

AES50 return channels allow personal mixes to be sent back to the console or hub for connection to wireless IEM transmitters

Remote operation up to 100-metres via screened CAT5/5e cable

Remote setup and control of the DP48 via Midas hubs

Full remote control of another DP48 when both are connected to the same hub or are used in a daisy chain configuration

High-contrast 2.4” colour TFT display provides a clear overview of mix parameters, meters, and group assignments

Mounts securely on a microphone stand using the DP48MB adapter (available separately)

Designed and engineered in the UK

Covered by Midas’ 10-year warranty program

Specifications

Connectors:

Headphones Mix A/B: 2 x 1/4” TRS, stereo, unbalanced, 25 Ohms

Line Mix A/B: 2 x 1/4” TRS, mono, balanced, 1 k Ohm / 2 x 1/4” TRS

AES50 Thru/In: 2 x RJ45

Low EQ: +/-15dB, semi-parametric, low shelving

Mid EQ: +/-15dB, semi-parametric, peaking

High EQ: +/-15dB, semi-parametric, high shelving

EQ Frequency: 20hz to 22kHz, adjustable

Limiter: Ratio ∞:1

Maximum Level: +12.8dBu (headphones)

Mix A/Mix B: 2 x stereo

AES50:

Audio Channels at 48kHz: 48
