Deskripsi

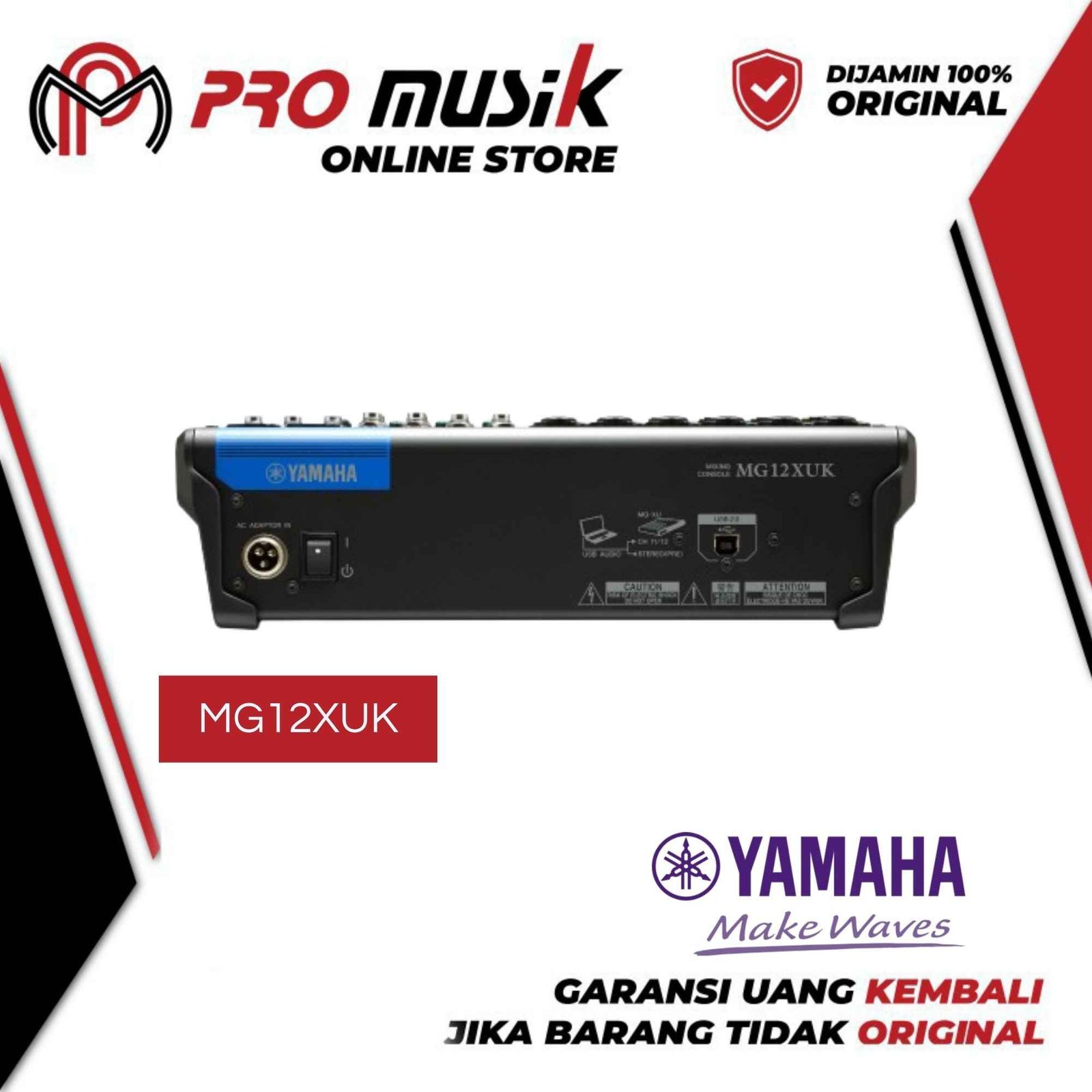

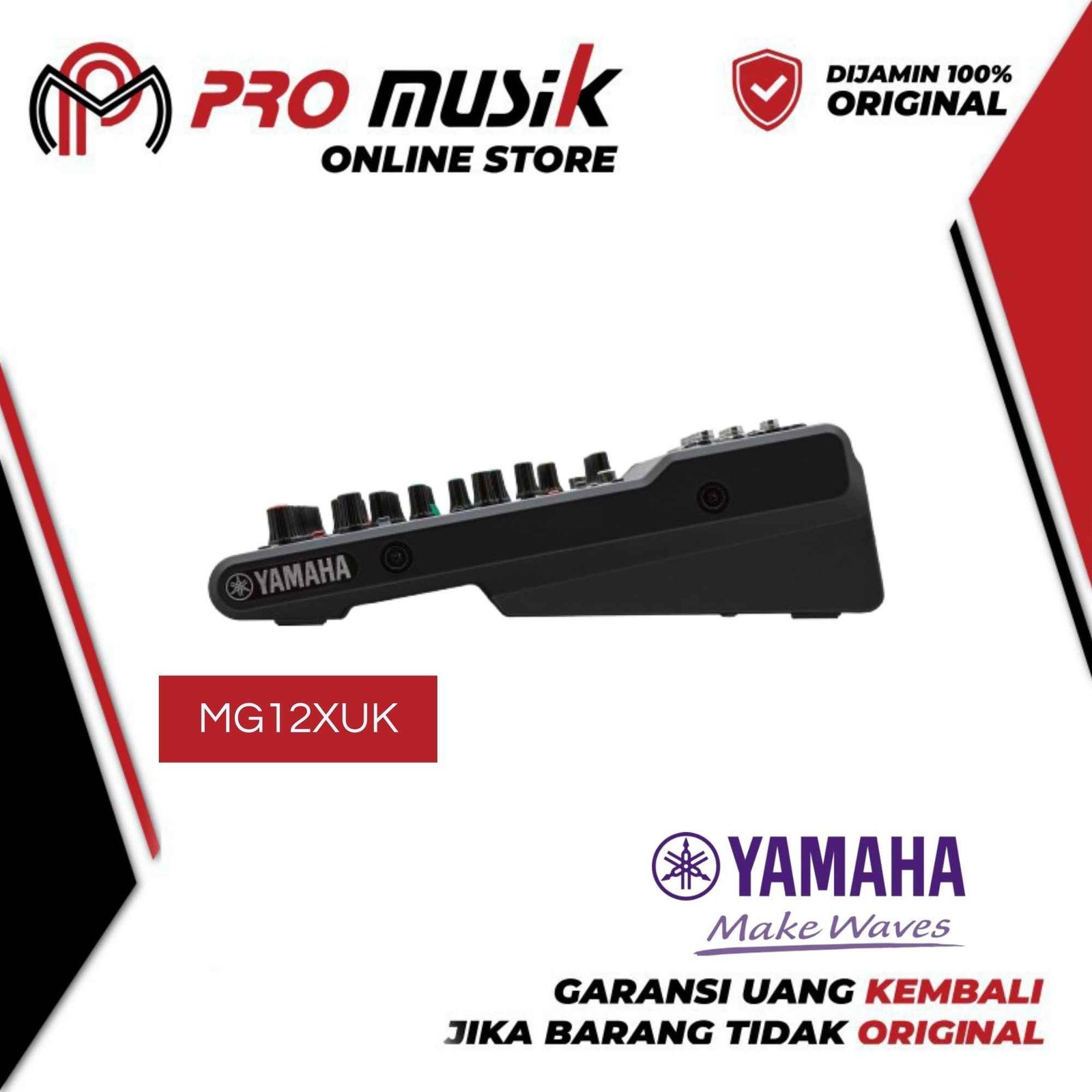

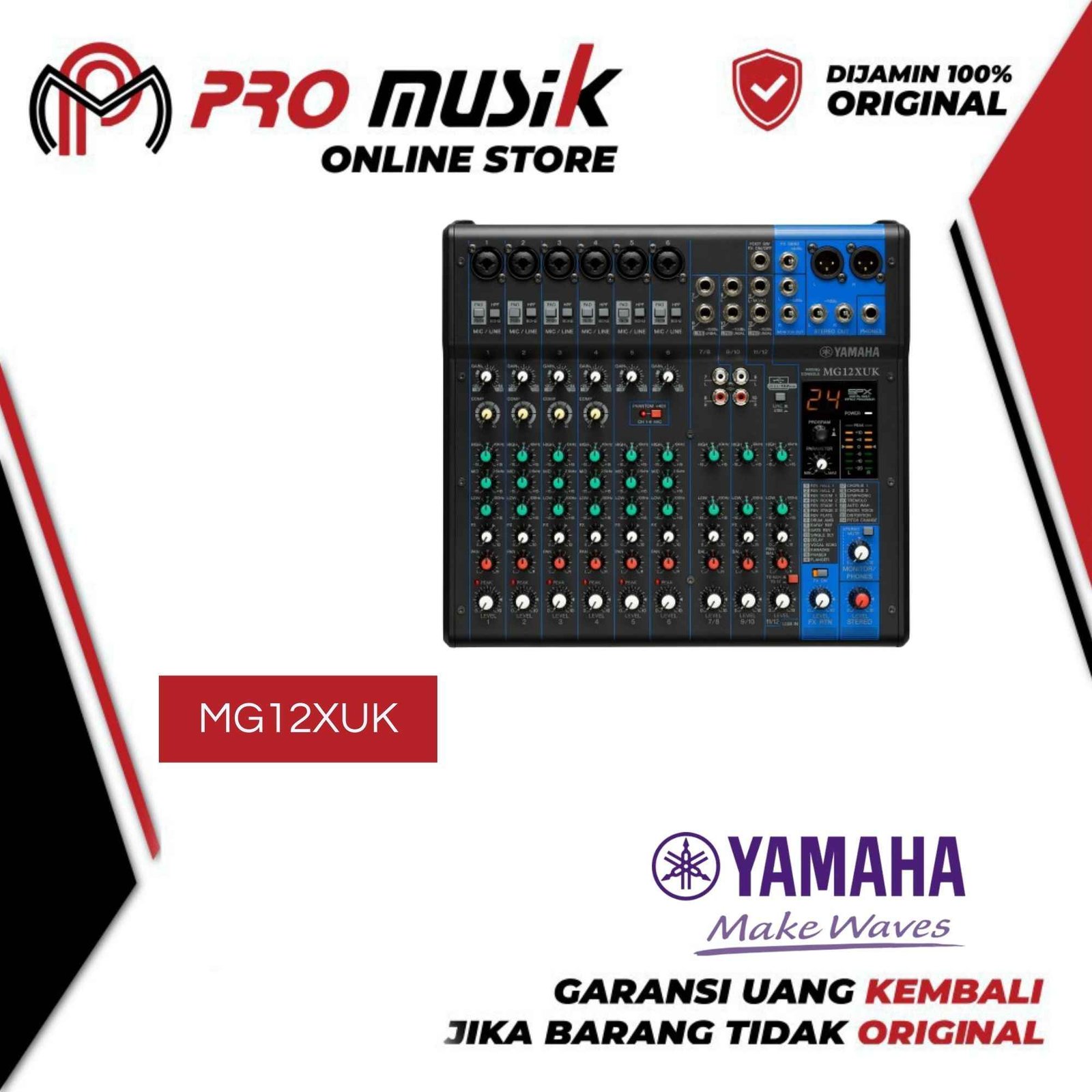

Yamaha MG12XUK Audio Mixer Knob with USB 2.0

Garansi Resmi 1 Tahun PT. Yamaha Musik Indonesia

Original 100%

Frequency Response Input to STEREO OUT +0.5 dB/-1.0 dB (20 Hz to 48 kHz) ,
refer to the nominal output level @ 1 kHz, GAIN knob: Min
Total harmonic distortion
(THD+N) Input to STEREO OUT 0.02 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min
0.003 % @ +24dBu (1kHz), GAIN knob: Min
Hum & Noise *1
(20 Hz to 20 kHz)
Equivalent Input Noise -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
Residual Output Noise -102 dBu (STEREO OUT, STEREO LEVEL knob: Min)
Crosstalk (1 kHz) *2 -83 dB

Input channels 12 channels: Mono [MIC/LINE]: 6, Stereo[LINE]: 3
Output channels STEREO OUT: 2, PHONES: 1, MONITOR OUT: 1, FX SEND: 1
Bus Stereo: 1, FX: 1
Input Channel Function
PAD CH 1 – CH 6 26 dB
HPF CH 1 – CH 6 80 Hz, 12 dB/oct
COMP CH 1 – CH 4
1-knob compressor (Gain/Threshold/Ratio)
Threshold: +22 dBu to -8 dBu
Ratio:1:1 to 4:1,
Output level: 0 dB to 7 dB
Attack time: approx. 25 msec
Release time: approx. 300 msec
EQ
CH 1 – CH 6
HIGH: Gain: +15 dB/-15 dB, Frequency: 10 kHz

shelving
MID: Gain: +15 dB/-15 dB, Frequency: 2.5 kHz peaking
LOW: Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
CH 7/8 –
CH 11/12
HIGH: Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
LOW: Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
PEAK LED CH 1 – CH 6 LED turns on when post EQ signal reaches 3 dB below clipping
Level Meter Post STEREO
LEVEL knob 2×7 -segment LED meter [PEAK, +10, +6, 0, -6, -10, -20 dB]
Internal Digital Effect SPX Algorithm 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off)

USB Audio 2 IN / 2 OUT USB Audio Class 2.0 compliant
Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit
Phantom Power Voltage +48 V
Power Supply adaptor PA-10 (AC 38 VCT, 0.62A, Cable length = 3.6 m)
or equivalent recommended by Yamaha
Power Consumption 22.9 W
