Deskripsi

Sennheiser EW-DP ENG SET Portable Digital UHF Wireless Microphone

Warranty 2 Years PT. Prima Citra Megaswara

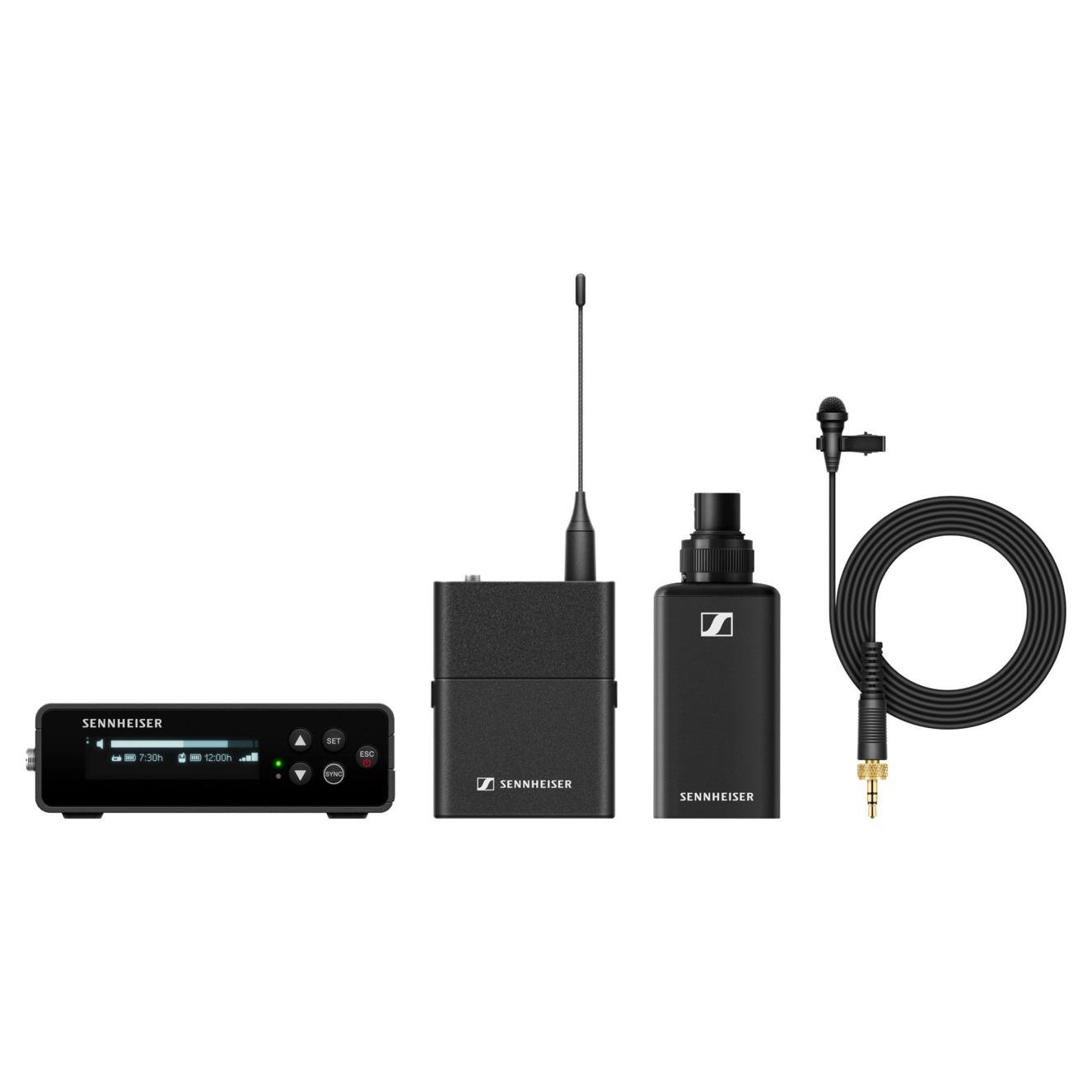

Portable digital UHF wireless microphone system with EW-DP EK digital single-channel receiver, EW-D SK digital bodypack transmitter, ME 2 omnidirectional lavalier, SKP plug-on transmitter, mounting components (including cheese plate and cold shoe), rechargeable battery, and accessories, ideal for interviews and outside broadcast set-ups.

Using the stable and reliable UHF connection, the EW-DP digital wireless microphone system gives filmmakers professional quality audio without the complexity. It’s the perfect choice for those looking to upgrade to a portable wireless system that offers superior range and more reliable connectivity than 2.4 GHz systems. Building on Sennheiser’s extensive knowledge amassed from decades of wireless audio excellence, EW-DP features an industry-leading 134 dB dynamic range, allowing you to capture detailed, realistic, and distortion-free audio. EW-DP puts time on your side. With up to 56 MHz bandwidth, it’s quick and easy to find a clean and interference-free channel. The long-lasting, exchangeable batteries allow for extended, worry-free filming sessions, and the screen shows remaining operating time for peace of mind. Plus, the thoughtfully engineered cheese plate allows for versatile attachment to your camera via cold shoe or mounting bolts. And mounting the receiver to the cheese plate takes less than a second. Simply place the receiver onto the cheese plate and magnets hold it securely in place. The EW-DP ENG Set includes both the SK bodypack transmitter with an ME 2 omnidirectional lavalier as well as the SKP plug-on transmitter for the most flexibility of any EW-DP system.

Top Specs

• Frequency range : 470.200 – 526.000
• Latency (ms) : 1.9 ms
• Pickup pattern : Omnidirectional
• Transducer type : Condenser
• Connection : Wireless

Tech Specs

Logistics
Warranty (years): 2

Product
Transducer type: Condenser
Latency (ms): 1.9 ms
Total harmonic distortion (THD): ≤ -60 dB for 1 kHz @ -3 dBfs input level

Frequency Specifications
Frequency range: 470.200 – 526.000
Audio frequency response: 20 Hz – 20 kHz (-3 dB) @ 3 dBfs

Acoustic Properties
Dynamic range (>): 134 dB
Pickup pattern: Omnidirectional

Connectivity
Connection: Wireless

Ambient Conditions
Operating relative humidity (≤ %): 5 – 95 % (non-condensing)
Operating temperature (C): -10 °C – +55 °C (14 °F – 131 °F)

Battery & Power
Battery capacity (Ah): 1.72
Battery count: 1
Battery included: AND
Battery voltage (V): 3.8

Dimensions
Product weight (g): 1018
Product height: 96
Product length: 316
Product width: 197

Bluetooth
Bluetooth transmission frequency: 2402 – 2480 MHz

What’s in the Box ?

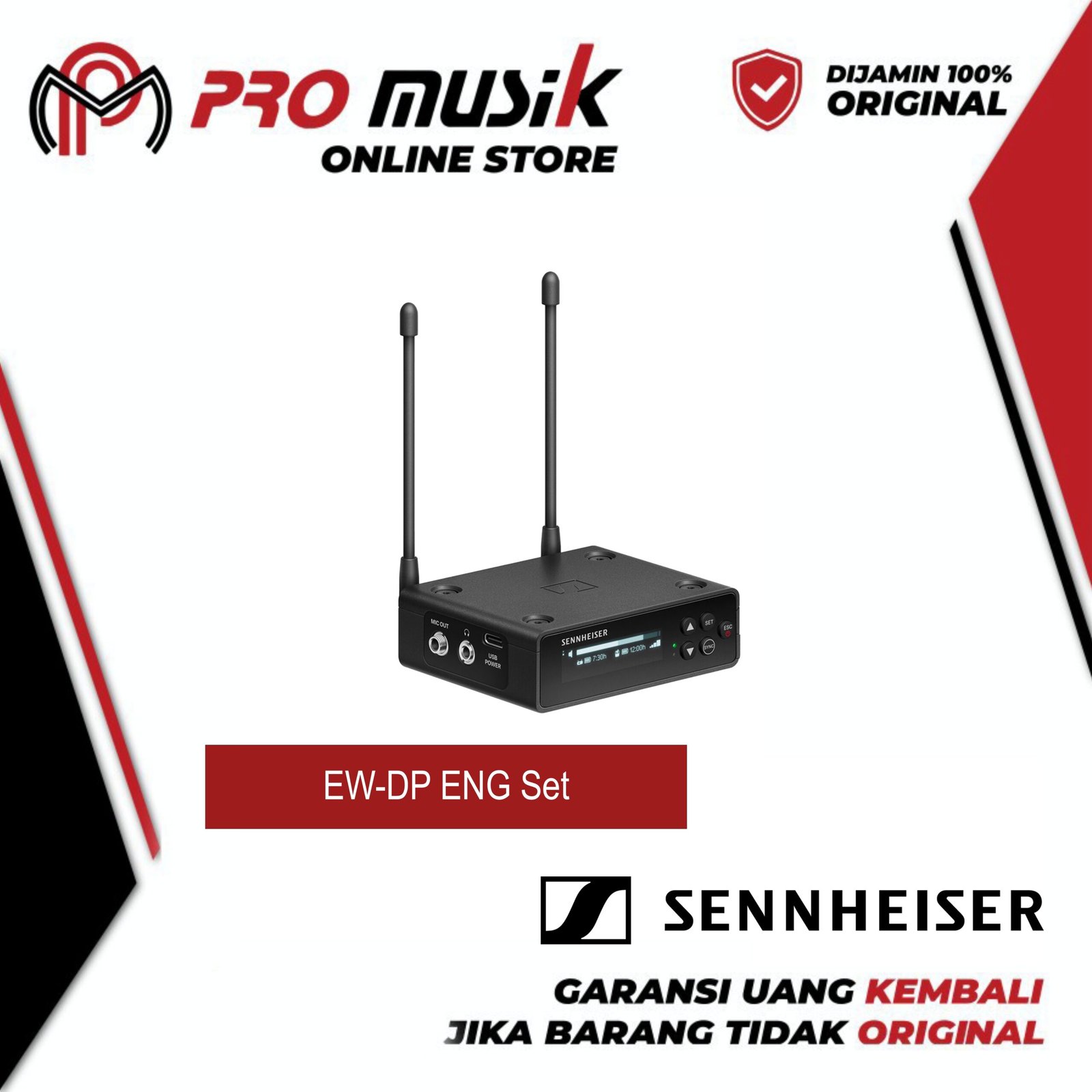

(1) EW-DP EK Portable single channel receiver
(1) EW-D SK Bodypack transmitter

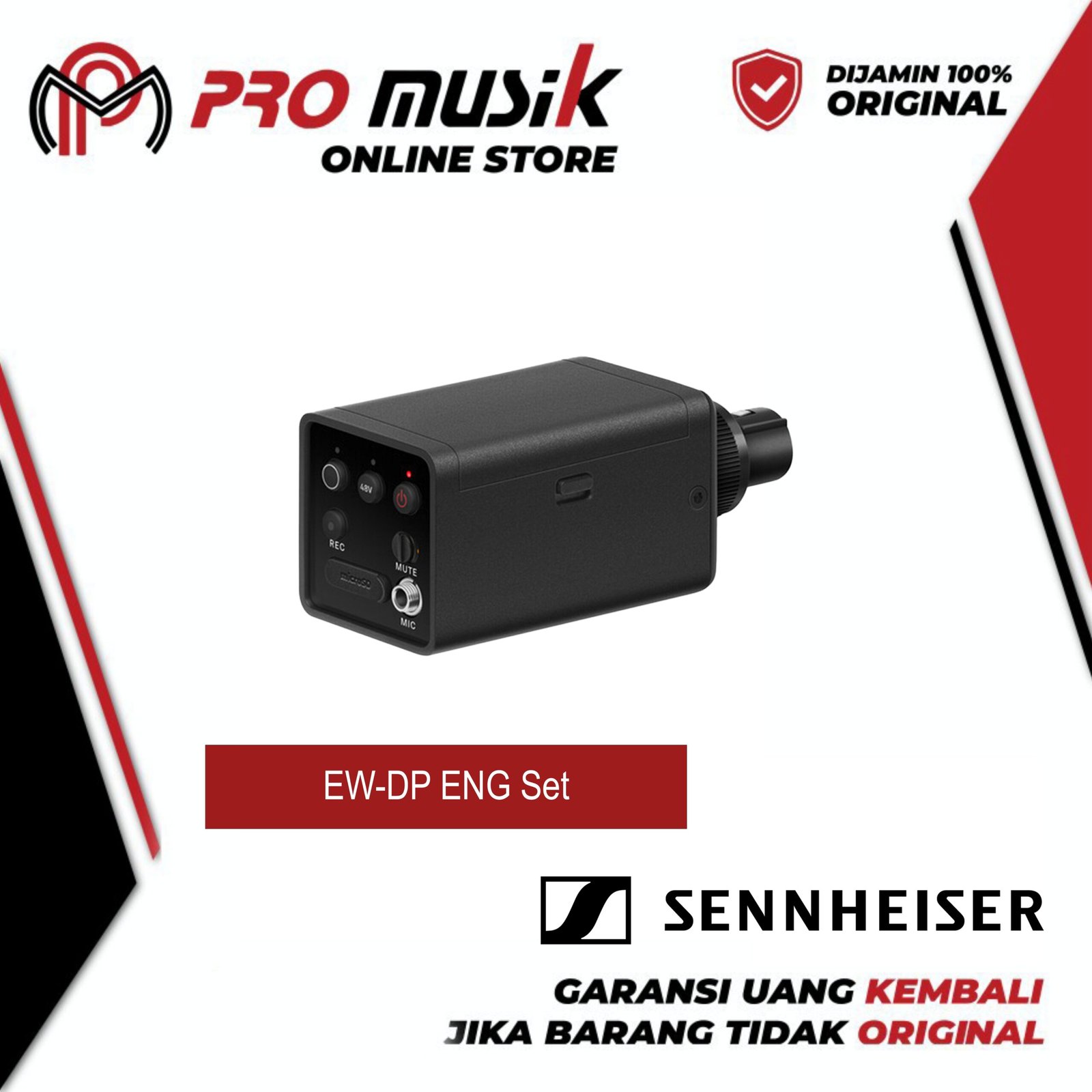

(1) EW-DP SKP Plug-on transmitter
(1) ME 2 Lavalier microphone
(1) Mounting kit (cheese plate, cold shoe, belt clip and screws)
(1) BA 70 Lithium Ion battery
(2) AA Battery

(1) Locking 3.5 mm TRS plug to 3.5 mm TRS plug cable
(1) Locking 3.5 mm TRS plug to XLR plug cable
(1) USB-C Charging cable
(1) Quick guide
(1) Safety guide
(1) Manufacturer declaration sheet
