Deskripsi

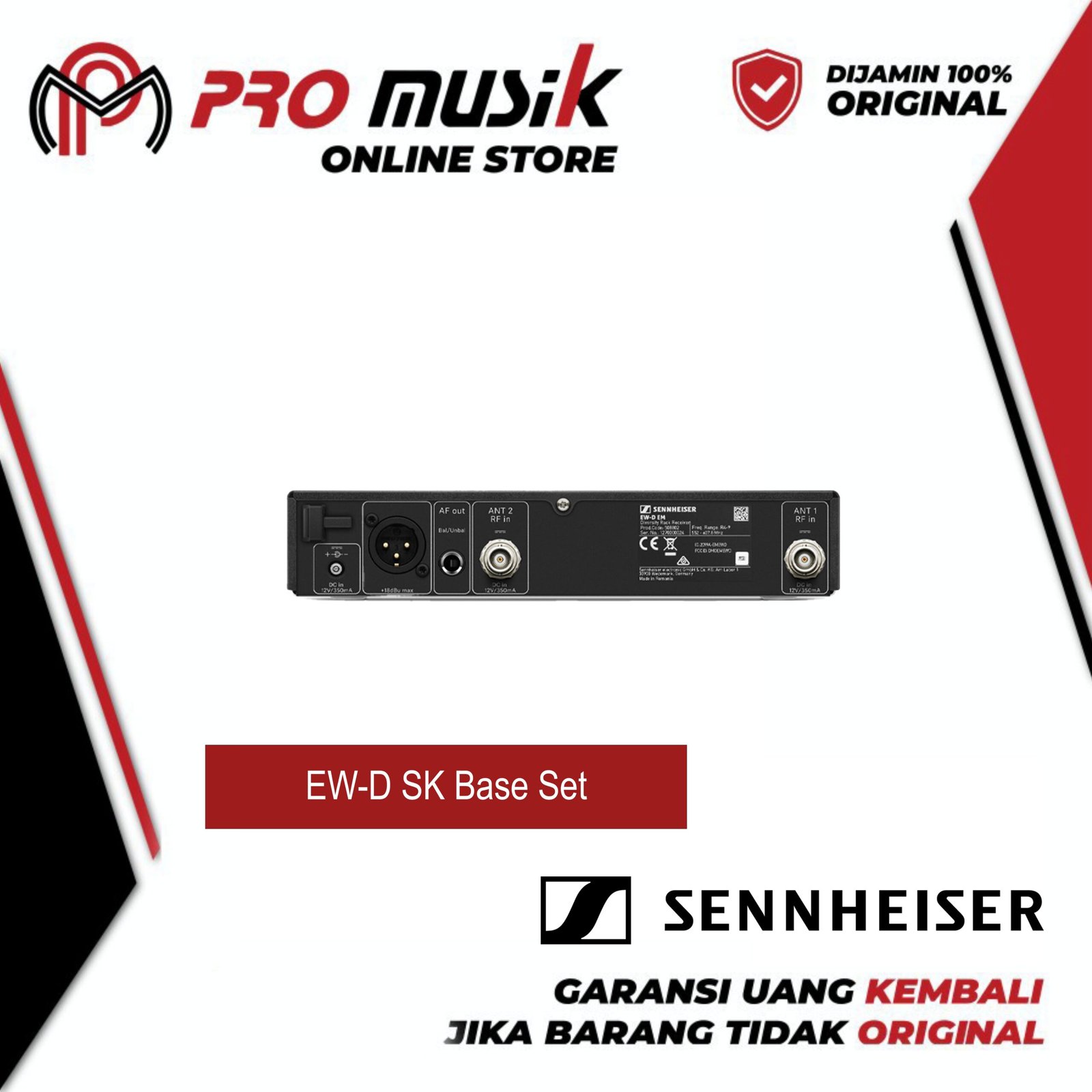

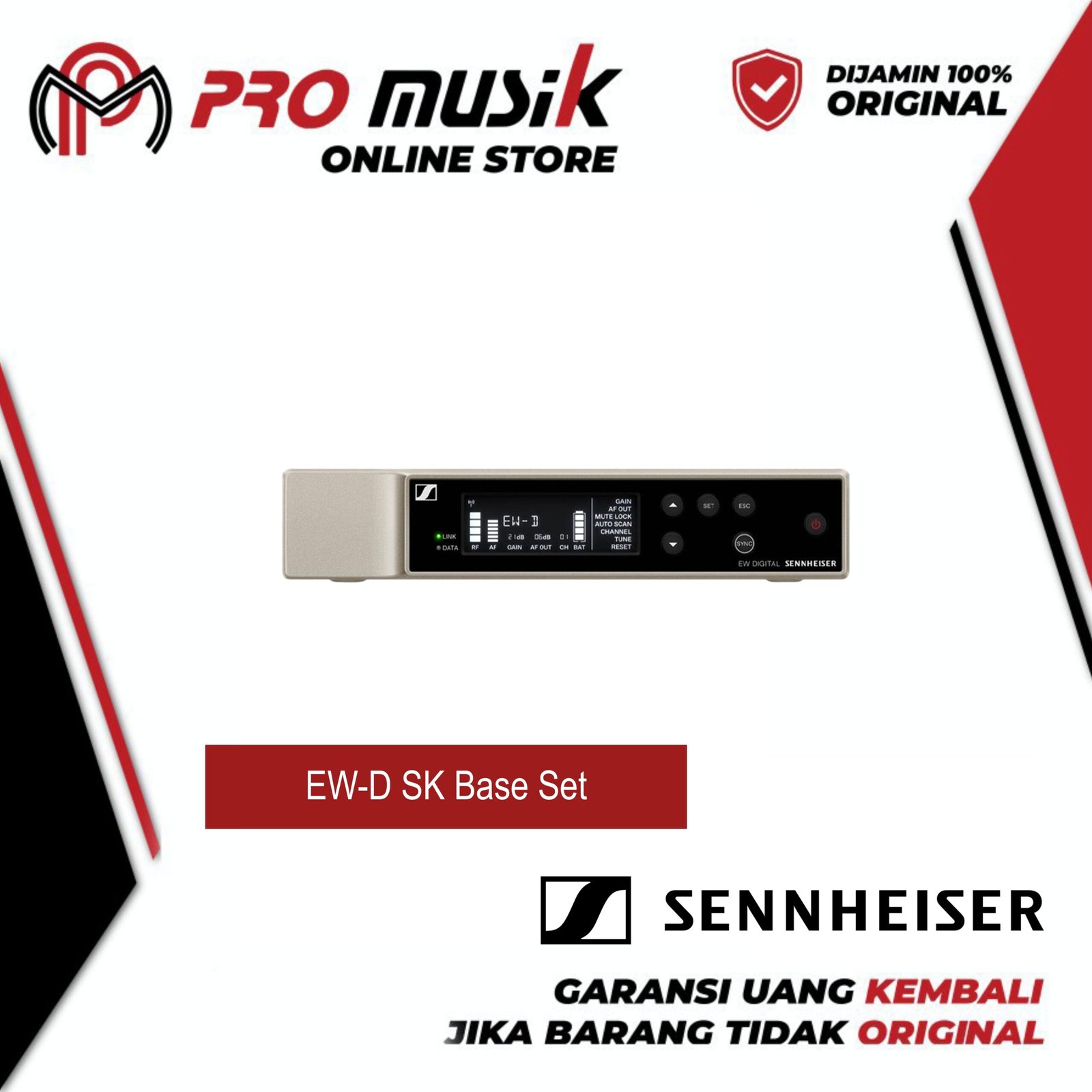

Sennheiser EW-D SK Base Set for Digital Wireless Applications

Warranty 2 Years PT. Prima Citra Megaswara

Base Set for digital wireless applications featuring sationary receiver and bodypack transmitter for use with a wide range of Evolution Wireless Digital microphones.

Versatile and feature-rich digital wireless system for those who sing, speak or play instruments that allows for seamless product pairing and management via the EW-D Smart Assist App. With a metal housing, the robust bodypack transmitter suits perfectly for daily use on stage.

Features

• Digital transmission operating in the UHF spectrum greatly enhances range, reliability and scalability
• Smart Assist App connects via Bluetooth Low Energy for a streamlined setup and operation at a distance
• Auto scan creates reliable connections with minimal time and effort
• 134 dB audio input dynamic range eliminates need for sensitivity adjustments and preserves every detail
• Elimination of intermodulation enables channels to be placed in an equidistant tuning grid 600 kHz apart
• 56 MHz of tuning bandwidth and equidistant spacing enables up to 90 channels
• 2,240 selectable frequencies allow for fine tuning
• Lithium-Ion battery pack (sold separately) delivers up to 12 hours of operation (up to 8 hours of operation with 2x provided AA batteries)

Top Specs

• Dimensions : 212 x 44 x 189 mm
• Frequency range : 520.000 – 576.000
• Latency (ms) : 1.9 ms
• Pickup pattern : Cardioid
• Transducer type : Condenser
• Connection : Wireless

Tech Specs

Logistics
Warranty (years): 2

Product
Transducer type: Condenser
Latency (ms): 1.9 ms
Total harmonic distortion (THD): ≤ -60 dB for 1 kHz @ -3 dBfs input level

Frequency Specifications
Frequency range: 520.000 – 576.000
Audio frequency response: 20 Hz – 20 kHz (-3 dB) @ 3 dBfs

Acoustic Properties
Dynamic range (>): 134 dB
Audio output level: 18 dBu max.

Pickup pattern: Cardioid

Connectivity
Connection: Wireless

Ambient Conditions
Operating relative humidity (≤ %): 5 – 95 % (non-condensing)
Operating temperature (C): -10 °C – +55 °C (14 °F – 131 °F)

Battery & Power
Battery capacity (Ah): 2.3
Battery count: 2
Battery included: Y
Battery voltage (V): 1.5
Charging current (mA): < 300 mA Electrical Properties
Input voltage: 11 – 13 V ⎓
Transmission power (mA): Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP) BLE: max. 10 mW EIRP

Dimensions
Dimensions: 212 x 44 x 189 mm
Product weight (g): 2800
Product height: 73
Product length: 405
Product width: 350

Bluetooth
Bluetooth transmission frequency: 2402 – 2480 MHz
