Deskripsi

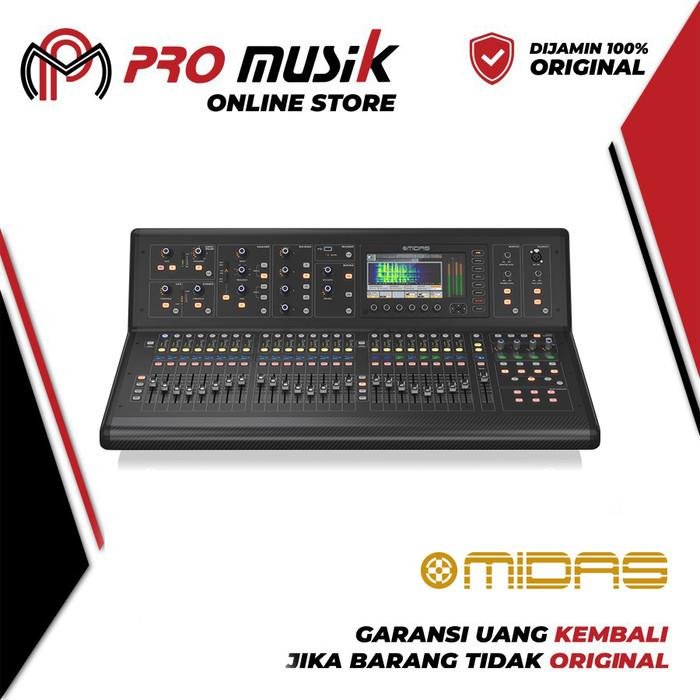

Midas M32 Live

100% Original

Garansi Resmi

Specification:

Processing:

– Input Processing Channels: 32 Input Channels, 8 Aux Channels, 8 FX Return Channels

– Output Processing Channels: 16

– 16 aux buses, 6 matrices, main LRC: 100

– Internal Effects Engines (True Stereo / Mono): 16

– Internal Show Automation (structured Cues / Snippets): 500 / 100

– Internal Total Recall Scenes (incl. Preamplifiers and Faders): 100

– Signal Processing: 40-Bit Floating Point

– A/D Conversion (8-channel, 96 kHz ready): 114 dB Dynamic Range (A-weighted*)

– D/A Conversion (stereo, 96 kHz ready): 120 dB Dynamic Range (A-weighted*)

– I/O Latency (Console Input to Output): 0.8 ms

– Network Latency (Stage Box In > Console > Stage Box Out): 1.1 ms

Connectors

– Midas PRO Series Microphone Preamplifier (XLR): 32

– Talkback Microphone Input (XLR): 1

– RCA Inputs / Outputs: 2

– XLR Outputs: 16

– Monitoring Outputs (XLR / ¼” TRS Balanced): 2

– Aux Inputs/Outputs (¼” TRS Balanced): 6

– Phones Output (¼” TRS): 2 (Stereo)

– Digital AES/EBU Output (XLR): 1

– AES50 Ports (Klark Teknik SuperMAC): 2

– Expansion Card Interface: 32 Channel Audio Input / Output

– ULTRANET P-16 Connector (No Power Supplied): 1

– MIDI Inputs / Outputs: 1

– USB Type A (Audio and Data Import / Export): 1

– USB Type B, rear panel, for remote control: 1

– Ethernet, RJ45, rear panel, for remote control: 1

Display

– Main Screen: 7″ TFT LCD, 800 x 480 Resolution, 262k Colours

– Channel LCD Screen: 128 x 64 LCD with RGB Colour Backlight

– Main Meter: 24 Segment (-57 dB to Clip)

Power

– Switch-Mode Power Supply: Auto-Ranging 100-240 VAC (50/60 Hz) ± 10%

– Power Consumption: 120 W

Physical

– Standard Operating Temperature Range: 5°C – 40°C (41°F – 104°F)

– Dimensions: 891 x 612 x 256 mm (35.1 x 24.1 x 10.1″)

– Weight: 25 kg (55 lbs)
