Deskripsi

PRODUCT OVERVIEW

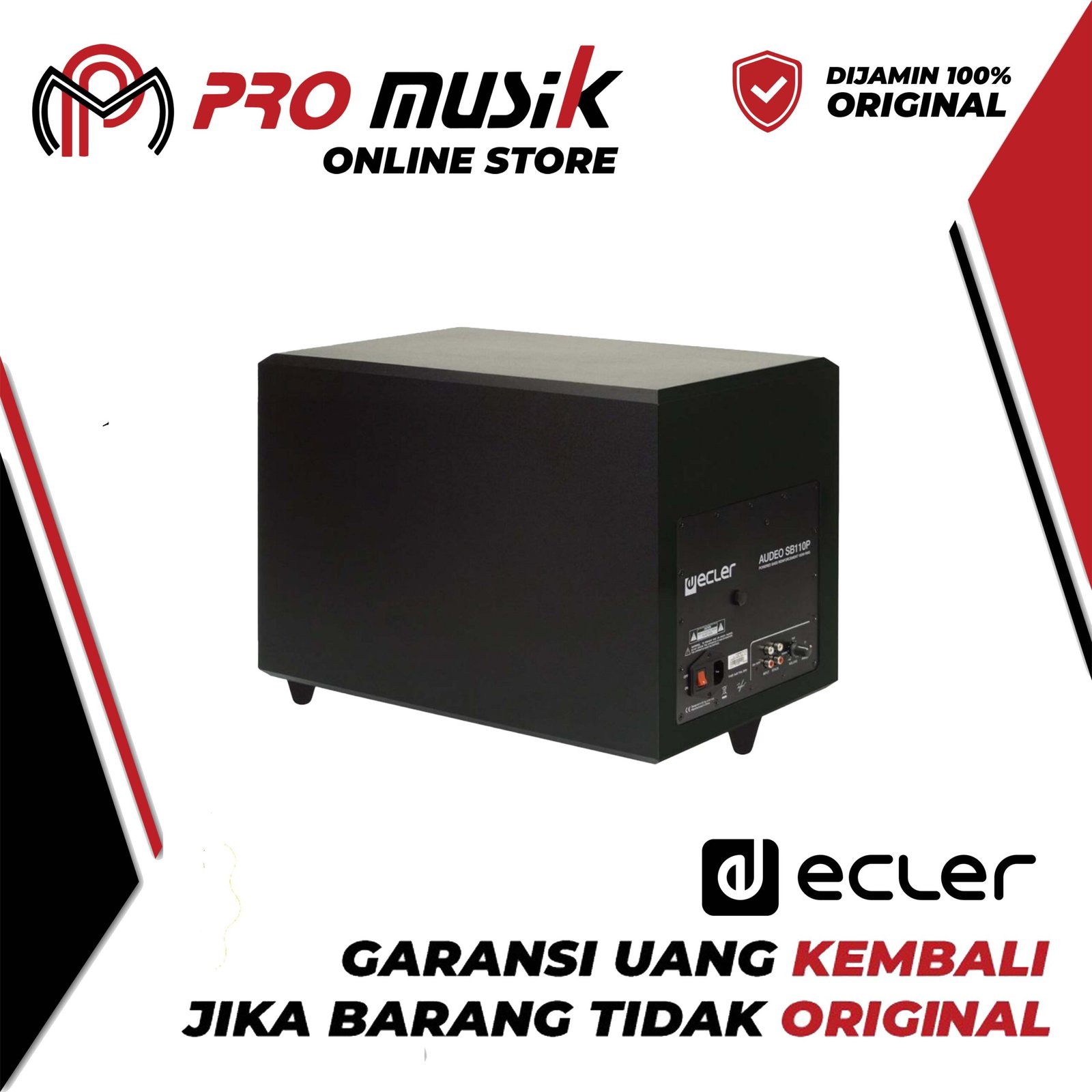

The AUDEO SB110P is the self-powered subwoofer reinforcement unit of the AUDEO series. With a discreet

design that enables its use in any environment, this 10”, 150 W RMS model, is the ideal partner for the

AUDEOs in those music applications where extended low-end response is required.

KEY FEATURES

• 10” driver

• 150 W RMS integrated amplifier

• RCA inputs with mono conversion

• RCA stack outputs (link to other SB110P units, AUDEO

speakers, etc.)

• PHASE and volume controls

• Internal 150Hz/18dB oct. LPF

APPLICATIONS

• Corporate and residential buildings

• Commercial premises

• Leisure centres

• Sound reinforcement in clubs, bars, etc.

• Health and sport centres

• Meeting and conference rooms

• Auditoriums, museums

TECHNICAL SPECIFICATIONS

AUDEOSB110P

System

Effective frequency range1 40Hz

Power handling 150 W RMS / 600 W Peak

Sensitivity2 90 dB (1W/1m)

Maximum SPL3 112 dB continuous / 118 dB peak

Recommended amplifier power 300 W RMS

Transducers

Ways 1 way sub-woofer

Driver 10″ woofer

Filters

Low-pass filter selector 150Hz/18dB oct.

Physical

Mounting system Cabinet

Finished colour Black (RAL 9005)

Dimensions (WxHxD) 310 x 425 x 480 mm / 12.2 x 16.73 x 18.9 in.

Weight 16.75 kg / 36.93 lb

Powered

Power 150 W RMS / 600 W Peak

Audio inputs RCA inputs with mono conversion

Audio outputs RCA stack outputs

Input sensitivity 0dBV 1V >1kW

LED indicators SP, Power ON, Stand-by

Mains AC 115V/230V 50-60Hz

Power consumption (pink noise, 1/8

power)

107VA

Power consumption (pink noise, 1/3

power)

152VA

Power consumption (max.power) 237 VA
